The checkbox acts as a "toggle" control: if it's on, clicking it turns it off; if it's off, clicking it turns it on.  Unlike the radio button, the operation of each checkbox on a form or group box is independent of all other checkboxes; changing the status of one does not affect other checkboxes.


The program can read or set the status of a checkbox with the Boolean Checked property (True is checked, False is unchecked).


Following is a checkbox demo.  The form contains 6 checkboxes within a group box, named chkHobby1, chkHobby2, chkHobby3, chkHobby4, chkHobby5, and chkHobby6.  The form also contains buttons named btnOK and btnExit, and a label called lblInfo.  This is the form at design time:



The code behind the OK button is:


    Private Sub btnOK_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnOK.Click


        Dim strInfo As String


        strInfo = "Items selected: "


        If chkHobby1.Checked Then strInfo &= chkHobby1.Text

        If chkHobby2.Checked Then strInfo &= ", " & chkHobby2.Text

        If chkHobby3.Checked Then strInfo &= ", " & chkHobby3.Text

        If chkHobby4.Checked Then strInfo &= ", " & chkHobby4.Text

        If chkHobby5.Checked Then strInfo &= ", " & chkHobby5.Text

        If chkHobby6.Checked Then strInfo &= ", " & chkHobby6.Text


        lblInfo.Text = strInfo


    End Sub

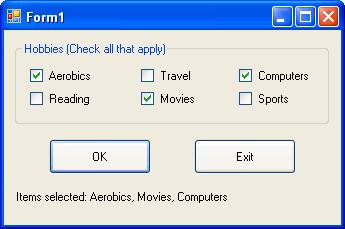

Sample run:




Download the VB project code for the example above here.
